Creating a Chrome extension with React and TypeScript

Throughout the long term, program augmentations have empowered us to alter our web insight. From the start, expansions comprised of little gadgets and warning identifications, yet as innovation advanced, augmentations turned out to be profoundly incorporated with sites. There are presently even augmentations that are all out applications.

With augmentations turning out to be progressively unpredictable, engineers made arrangements that empowered prior instruments to scale and adjust. Systems like React, for instance, further develop web advancement and are even utilized — rather than vanilla JavaScript — for building web expansions.

What are Chrome extensions?

To learn more about browser extensions, let’s look at Google Chrome. A Chrome extension is a system made of different modules (or components), where each module provides different interaction types with the browser and user. Examples of modules include background scripts, content scripts, an options page, and UI elements.

In this tutorial, we’ll build a browser extension using Chrome and React. This blog post will cover:

How to use React to build UI elements
How to create content scripts to interact with websites
How to use TypeScript throughout the complete solution

Building a Chrome extension

Before we jump into implementation, let’s introduce our Chrome extension: the SEO validator extension. This extension analyzes websites to detect common technical issues in the implementation of SEO metadata and the structure of a site.

Our extension will run a set of pre-defined checks over the current page DOM and reveal any detected issues.

Creating a React application with Create React App (CRA)

Creating a React application with TypeScript support is easy using CRA.

npx create-react-app chrome-react-seo-extension --template typescript

Now with our skeleton application up and running, we can transform it into an extension.

Converting the React app into a Chrome extension

Because a Chrome extension is a web application, we don’t need to adjust the application code. However, we do need to ensure that Chrome can load our application.

Extension configuration

All of the configurations for the extensions belong in the manifest.js file, which is currently living in our public folder.

This file is generated automatically by CRA. However, to be valid for an extension, it must follow the extension guidelines. There are currently two versions of manifest files supported by Chrome v2 and v3, but in this guide, we’ll use v3.

Let’s first update file public/manifest.json with the following code:

{
"name": "Chrome React SEO Extension",
"description": "The power of React and TypeScript for building interactive Chrome extensions",
"version": "1.0",
"manifest_version": 3,
"action": {
"default_popup": "index.html",
"default_title": "Open the popup"
},
"icons": {
"16": "logo192.png",
"48": "logo192.png",
"128": "logo192.png"
}
}

Next, let’s break down each field:

name: this is the name of the extension
description: description of the extension
version: current version of the extension
manifest_version: version for the manifest format we want to use in our project
action: actions allow you to customize the buttons that appear on the Chrome toolbar, which usually trigger a pop-up with the extension UI. In our case, we define that we want our button to start a pop-up with the contents of our index.html, which hosts our application
icons: set of extension icons

Building your application

To build a React application, simply run:

npm run build

This command calls react-scripts to build our application, generating the output in the build folder. But what exactly is happening there?

When React builds our app, it generates a series of files for us. Let’s take a look at an example:

As we can see, CRA compressed the application code into a few JavaScript files for chunks, main, and runtime. Additionally, it generated one file with all our styles, our index.html, and all the assets from our public folder, including the manifest.json.

This looks great, but if we were to try it in Chrome, we would start receiving Content Security Policy (CSP) errors. This is because when CRA builds the application, it tries to be efficient, and, to avoid adding more JavaScript files, it places some inline JavaScript code directly on the HTML page. On a website, this is not a problem — but it won’t run in an extension.

So, we need to tell CRA to place the extra code into a separate file for us by setting up an environment variable called INLINE_RUNTIME_CHUNK.

Because this environment variable is particular and only applies to the build, we won’t add it to the .env file. Instead, we will update our build command on the package.json file.

Your package.json scripts section currently looks like this:

Edit the build command as follows:

“build”: “INLINE_RUNTIME_CHUNK=false react-scripts build”,

If you rebuild your project, the generated index.html will contain no reference to inline JavaScript code.

Loading the extension into your browser

We are now ready to load the extension into Chrome. This process is relatively straightforward. First, visit chrome://extensions/ on your Chrome browser and enable the developer mode toggle:

Then, click Load unpacked and select your build folder. Your extension is now loaded, and it’s listed on the extensions page. It should look like this:

In addition, a new button should appear on your extensions toolbar. If you click on it, you will see the React demo application as a pop-up.

Building the pop-up

The action icon is the main entry point to our extension. When pressed, it launches a pop-up that contains index.html.

In our current implementation, I see two major problems: the pop-up is too small, and it’s rendering the React demo page.

The first step is to resize the pop-up to a larger size so it can contain the information we want to present to the user. All we need to do is adjust the width and height of the body element.

Open the file index.css generated by React and change the body element to contain width and height.

body {

width: 600px;

height: 400px;

...

}

Now, return to Chrome. You won’t see any difference here because our extension only works with the compiled code, which means that to see any change in the extension itself, we must rebuild the code. This is a considerable downside. To minimize the work, I generally run extensions as web applications and only run them as extensions for testing.

After rebuilding, Chrome will notice the changes automatically and refresh the extension for you. It should now look like this:

If you have any issues and your changes are not applying, review the Chrome extensions page for any errors on your extension or manually force a reload.

Designing the UI

Designing the UI happens entirely on the React application using the components, functions, and styles you know and love, and we won’t focus on creating the screen itself.

Let’s directly jump into our App.tsx with our updated code:

import React from 'react';

import './App.css';

function App() {

return (

<h1>SEO Extension built with React!</h1>

<span className="SEOValidationFieldTitle">Title</span>

90 Characters

</span>

</div>

The title of the page

</div>

</li>

<span className="SEOValidationFieldTitle">Main Heading</span>

</span>

</div>

The main headline of the page (H1)

</div>

</li>

</ul>

</div>

);

}

export default App;

Add some styles so it looks like this:

It looks better, but it’s not quite there yet. In the component code, we hardcoded the title of the page, the main heading, and the validations.

As it stands, our extension works well in isolation as a pure React application. But what happens if we want to interact with the page the user is visiting? We now need to make the extension interact with the browser.

Accessing the website contents

Our React code runs in isolation inside the pop-up without understanding anything about the browser information, tabs, and sites the user is visiting. The React application can’t directly alter the browser contents, tabs, or websites. However, it can access the browser API through an injected global object called chrome.

The Chrome API allows our extension to interact with pretty much anything in the browser, including accessing and altering tabs and the websites they are hosting, though extra permissions will be required for such tasks.

However, if you explore the API, you won’t find any methods to extract information from the DOM of a website, so then, how can we access properties such as the title or the number of headlines a site has? The answer is in content scripts.

Content scripts are special JavaScript files that run in the context of web pages and have full access to the DOM elements, objects, and methods. This makes them perfect for our use case.

But the remaining question is, how does our React app interact with these content scripts?

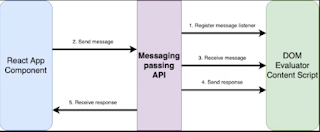

Using message passing

Message passing is a technique that allows different scripts running in different contexts to communicate with each other. Messages in Chrome are not limited to content scripts and pop-up scripts, and message passing also enables cross-extension messaging, regular website-to-extension messaging, and native apps messaging.

Let’s put the messaging passing API into practice by building our messaging system within our extension.

Setting up the project

Interacting with the message passing API for our requirements requires three things:

Access to the Chrome API
Permissions
Content scripts

The Chrome API is accessible through the chrome object globally available in our React app. For example, we could directly use it to query information about the browser tabs through the API call chrome.tabs.query.

Trying that will raise type errors in our project, as our project doesn’t know anything about this chrome object. So, the first thing we need to do is to install proper types:

npm install @types/chrome --save-dev

Next, we need to inform Chrome about the permissions required by the extension. We do that in the manifest file through the permissions property.

Because our extension only needs access to the current tab, we only need one permission: activeTab.

Please update your manifest to include a new permissions key:

"permissions": [

"activeTab"

Lastly, we need to build the content script to gather all the information we need about the websites.

Building content scripts in separate JavaScript files

We already learned that content scripts are special JavaScript files that run within the context of web pages, and these scripts are different and isolated from the React application.

However, when we explained how CRA builds our code, we learned that React will generate only one file with the application code. So how can we generate two files, one for the React app and another for the content scripts?

I know of two ways. The first involves creating a JavaScript file directly in the public folder so it is excluded from the build process and copied as-is into the output. However, we can’t use TypeScript here, which is very unfortunate.

Thankfully, there’s a second method: we could update the build settings from CRA and ask it to generate two files for us. This can be done with the help of an additional library called Craco.

CRA performs all the magic that is needed to run and build React applications, but it encapsulates all configurations, build settings, and other files into their library. Craco allows us to override some of these configuration files without having to eject the project.

To install Craco, simply run:

npm install @craco/craco --save

Next, create a craco.config.js file in the root directory of your project. In this file, we will override the build settings we need.

Let’s see how the file should look:

module.exports = {

webpack: {

configure: (webpackConfig, {env, paths}) => {

return {

...webpackConfig,

entry: {

main: [env === 'development' && require.resolve('react-dev-utils/webpackHotDevClient'),paths.appIndexJs].filter(Boolean),

content: './src/chromeServices/DOMEvaluator.ts',

output: {

...webpackConfig.output,

filename: 'static/js/[name].js',

optimization: {

...webpackConfig.optimization,

runtimeChunk: false,

}

CRA utilizes webpack for building the application. In this file, we override the existing settings with a new entry. This entry will take the contents from ./src/chromeServices/DOMEvaluator.ts and build it separately from the rest into the output file static/js/[name].js, where the name is content, the key where we provided the source file.

At this point, Craco is installed and configured but is not being used. In your package.json, it’s necessary to edit your build script once again to this:

"build": "INLINE_RUNTIME_CHUNK=false craco build",

The only change we made is replacing react-scripts with craco. We are almost done now. We asked craco to build a new file for us, but we never created it. We will come back to this later. For now, know that one key file is missing, and in the meantime, building is not possible.

Telling Chrome where to find content scripts

We did all this work to generate a new file called content.js as part of our build project, but Chrome doesn’t know what to do with it, or that it even exists.

We need to configure our extension in a way that the browser knows about this file, and that it should be injected as a content script. Naturally, we do that on the manifest file.

In the manifest specification, there’s a section about content_scripts. It’s an array of scripts, and each script must contain the file location and to which websites should be injected.

Let’s add a new section in the manifest.json file:

"content_scripts": [

{

"matches": ["http://*/*", "https://*/*"],

"js": ["./static/js/content.js"]

}

With these settings, Chrome will inject the content.js file into any website using HTTP or HTTPS protocols.

Developing the DOMEvaluator content script

As configurations, libraries, and settings go, we are ready. The only thing missing is to create our DOMEvaluator content script and to make use of the messaging API to receive requests and pass information to the React components.

Here’s how our project will look:

First, let’s create the missing file. In the folder src, create a folder named chromeServices and a file named DOMEvaluator.ts

A basic content script file would look like this:

import { DOMMessage, DOMMessageResponse } from '../types';

// Function called when a new message is received

const messagesFromReactAppListener = (

msg: DOMMessage,

sender: chrome.runtime.MessageSender,

sendResponse: (response: DOMMessageResponse) => void) => {

console.log('[content.js]. Message received', msg);

const headlines = Array.from(document.getElementsByTagName<"h1">("h1"))

.map(h1 => h1.innerText);

// Prepare the response object with information about the site

const response: DOMMessageResponse = {

title: document.title,

headlines

};

sendResponse(response);

}

/**

* Fired when a message is sent from either an extension process or a content script.

chrome.runtime.onMessage.addListener(messagesFromReactAppListener);

There are three key lines of code:

Registering a message listener

Listener function declaration (messagesFromReactAppListener)

sendResponse (defined as a parameter from the listener function)

Now that our function can receive messages and dispatch a response, let’s move next to the React side of things.

React App component

Our application is now ready to interact with the Chrome API and send messages to our content scripts.

Because the code here is more complex, let’s break it down into parts that we can put together at the end.

Sending a message to a content script requires us to identify which website will receive it. If you remember from a previous section, we granted the extension access to only the current tab, so let’s get a reference to that tab.

Getting the current tab is easy and well documented. We simply query the tabs collection with certain parameters, and we get a callback with all the references found.

chrome.tabs && chrome.tabs.query({

active: true,

currentWindow: true

}, (tabs) => {

// Callback function

});

With the reference to the tab, we can then send a message that can automatically be picked by the content scripts running on that site.

chrome.tabs.sendMessage(

// Current tab ID

tabs[0].id || 0,

// Message type

{ type: 'GET_DOM' } as DOMMessage,

// Callback executed when the content script sends a response

(response: DOMMessageResponse) => {

...

});

Something important is happening here: when we send a message, we provide the message object, and, within that message object, I’m setting a property named type. That property could be used to separate different messages that would execute different codes and responses on the other side. Think of it as dispatching and reducing when working with states.
